#1 BwanaDik

BwanaDik

    FJR Commander

  • Members++
  • PipPipPipPipPip
  • 1,718 posts
  • Gender:Male
  • Location:Conroe, TX
  • 2006 ABS AE (Gen II) World

Posted 23 August 2009 - 04:42 PM

This is yet another install thread, however, like with the previous Penske and fork installs, Iíve done a few things differently and have tried to consolidate some of the links and part numbers.

Between Brodie and my mechanic, Dan, up at Cycle Shack, you guys put the wiring installation bar pretty high. So I had to really do a really professional job. I made up a wiring diagram before starting because I was basically making a new complete harness and it helped a lot. I ordered several different colors of wire from Grainger so the whole thing wouldnít be just black and red. I found out later you can now buy multicolored wire from Parts Unlimited at most motorcycle shops.

I got a full Soltek kit, including the diffusion lens and lens covers, from another Forum member, brand new and still in the box. Plus the cool brackets from the Unmentionable One. I also sprung for the Fuzeblock distribution block because I like the built in relay and the ability to change from switched to un-switched by merely moving the fuse.

I used the same switch as seen Here . You buy them Switch but unfortunately they donít sell the little plastic covers. Go figure. I got some from another Forum member (thanks George) so if you need a couple, I have plenty. Here is another good thread for reference.

I also used THESE connectors for all wiring connections. Actually, I originally bought some connectors from the shop that are listed as Honda connectors, before I found these. They are way better than anything you can get at NAPA or The Zone. It's quite an assembly procedure because you have to fit 4 pieces for each connection but they are water tight and very secure. I also got the crimping tool from the same place, itís WAY better than any other crimping tool Iíve ever found and it appears to be the one needed for these connectors

Posted Image

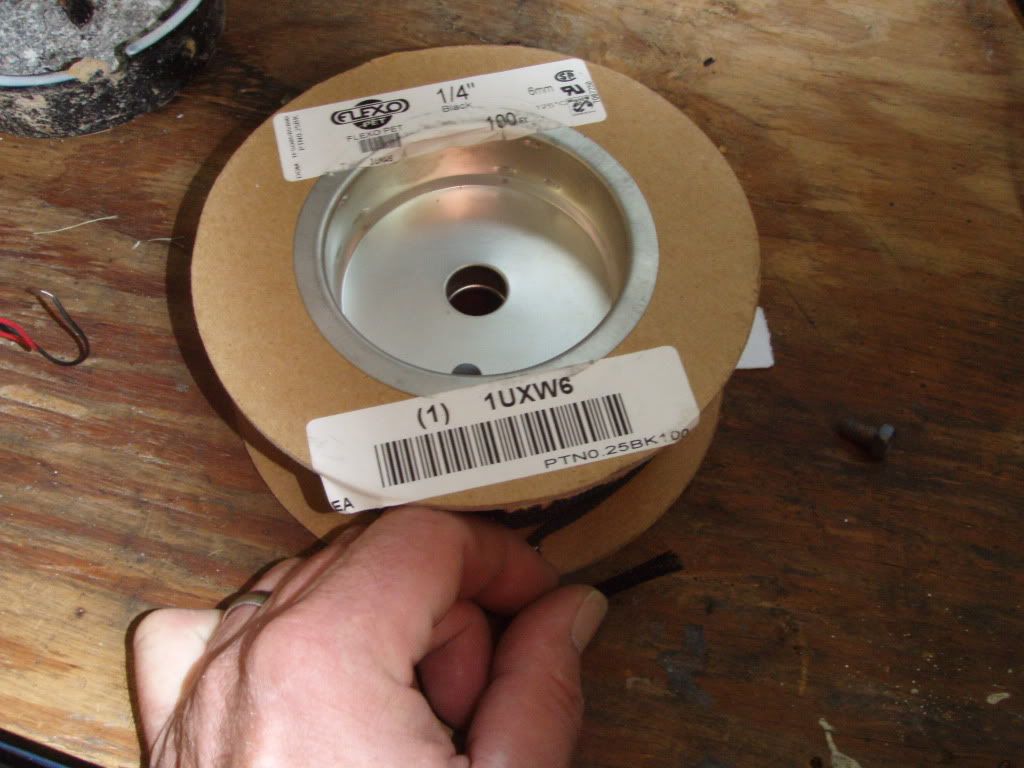

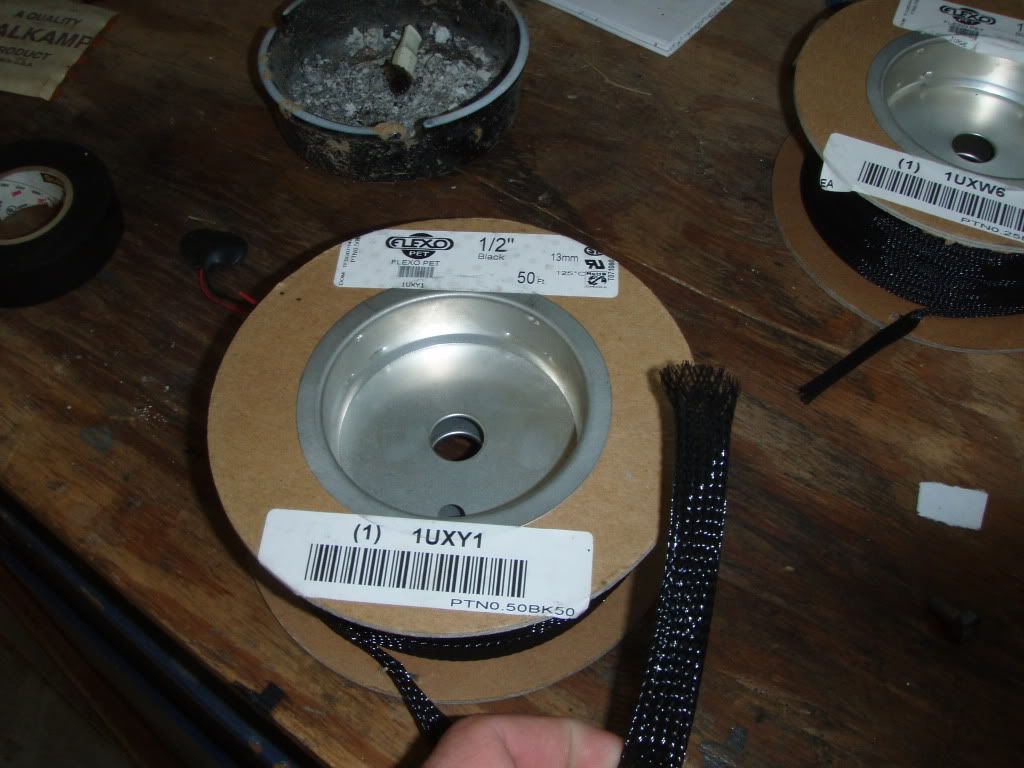

I found this wire loom at Grainger Clicky Itís really cool looking, almost like fishnet stockings (Odot will probably have his whole bike rewired with this stuff by next SFO). A couple of drawbacks: 1) You have to pull all of the wires in the harness thru at once, itís difficult to thread another wire thru if there is already a bundle inside. Not like the corrugated plastic ones where you can feed a new wire in thru the split. 2) The ends fray badly when you cut the loom to length. It is easily fixed with electrical tape but I wonder at the long term life of the tape out in the weather.

Posted Image

Posted Image

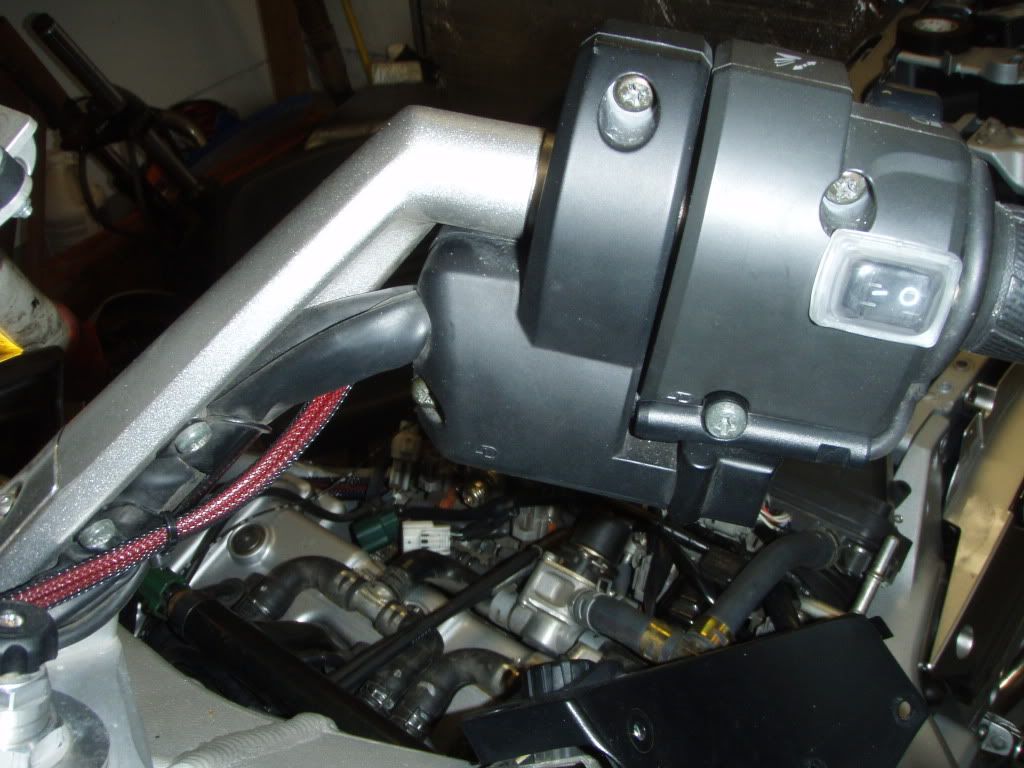

The routing of the wiring was a little tricky inside the left switch but

Posted Image

after re-reading This a couple of times and looking at the pictures, I figured it out. It's not an easy fix as there is almost no room inside the switch cover. I had to cut off the ends of the rocker switch connectors to clear the handlebar and solder the wires onto the connectors. I was able to run the switch wire down the handle bar inside the fishnet loom and into the harness connection behind the B/C panels

Posted Image

You can see the main 30 amp fuse holder for the Fuzeblock in this picture too.

Posted Image

Unfortunately, during the switch installation, I stupidly took the plate off the bottom of the AE hand shifter and return springs fell out (picture). I found one of them but the other is lost in the bowels of the bike (I think). Oh well, I never use the hand shifter anyway. If you see any of these laying around, I'd be happy to take them off your hands

Posted Image

The wiring to the front of the bike included power for the Soltekís, two Powerlets, the switch wires, and the main feed from the battery to the Fuzeblock (including all grounds back to the Fuzeblock). I connected the Soltek handswitch to one of the "switched" circuts in the Fuzeblock to trigger the Soltek relay (NAPA P/N AR272 25amp/12 volt). I ran it thru the headset and along the inner frame rail

Posted Image

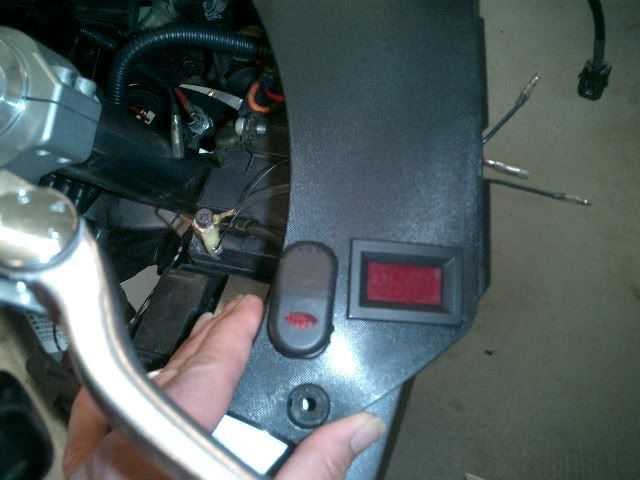

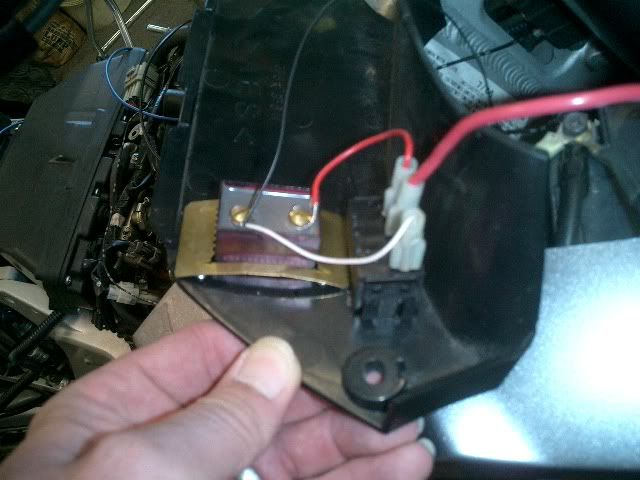

I also, since I was in there, re-wired my Datel with sensible sized wiring and an inline fuse.

Posted Image

Posted Image

Posted Image

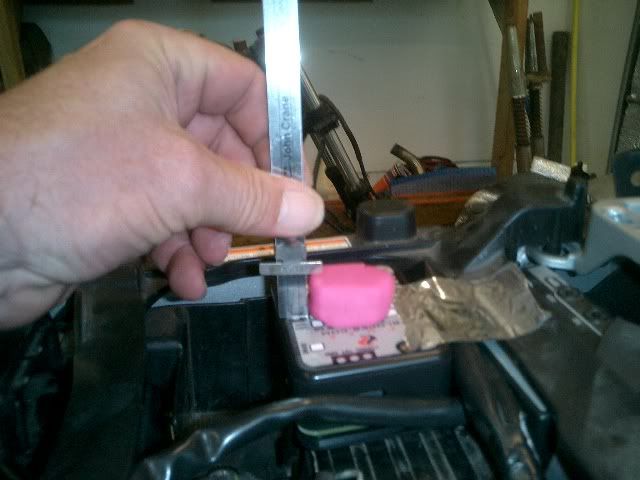

I mounted the Fuzeblock on top of the AE shift control unit. Unfortunately the control unit takes up a lot of the tool box area but it seemed like a good location. I also did a clearance check with some Play-Doh to be sure it all fit under the seat.

Posted Image

Posted Image

Another thing I didn't like was how the connectors didn't seat all the way down on the Soltek relay. Obviously, the answer is to get the correct size plugs but they'd have to be pretty long. Any one else have this problem? Do you cut off some of the blades on the relay?

Posted Image

I took the ďswitchedĒ power off the tail light wiring, as mentioned in other install posts. However, the wiring loom over the tail assembly wiring is tough to get thru so I ended up taking apart the tail assembly to get to the wiring. I used Posi-lock connectors to tap into it. Iím still not real happy with the way it ended up but itís probably OK. I later moved the wire behind the strut. I also dumped the Posi-lok and did a proper splice with the four piece connectors listed at the top. The Posi-lok's seem to split the 16 and 18 gauge wires and not necessarily make a solid connection.

Posted Image

I also put a Powerlet behind the Penske mount so Bambi can plug in her vest if she needs to. I may also use it for a future aux. fuel cell I have in mind.

Posted Image

After I got everything installed and buttoned up, my turn signals didnít work. Turns out that somehow the little plate inside the hand switch had come adrift and the clip that holds it in place was gone. Donít know how that happened as I hadnít touched it but I was able to fix it with a zip tie. May be a warrantee thing, have to check with the shop. Odd.

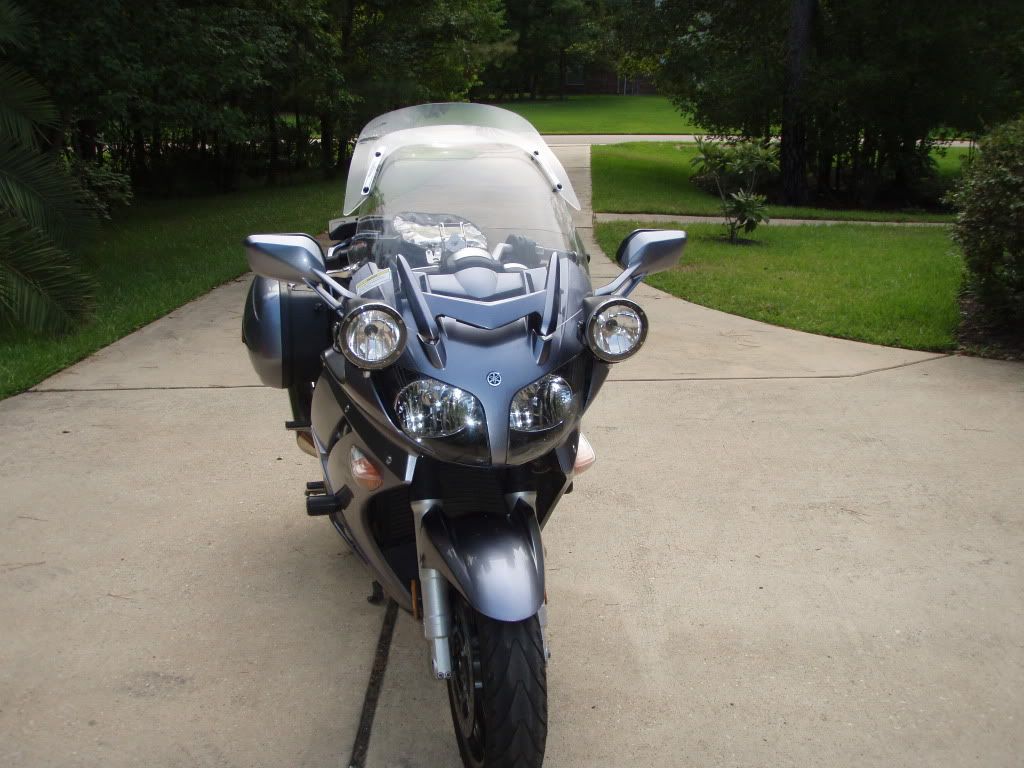

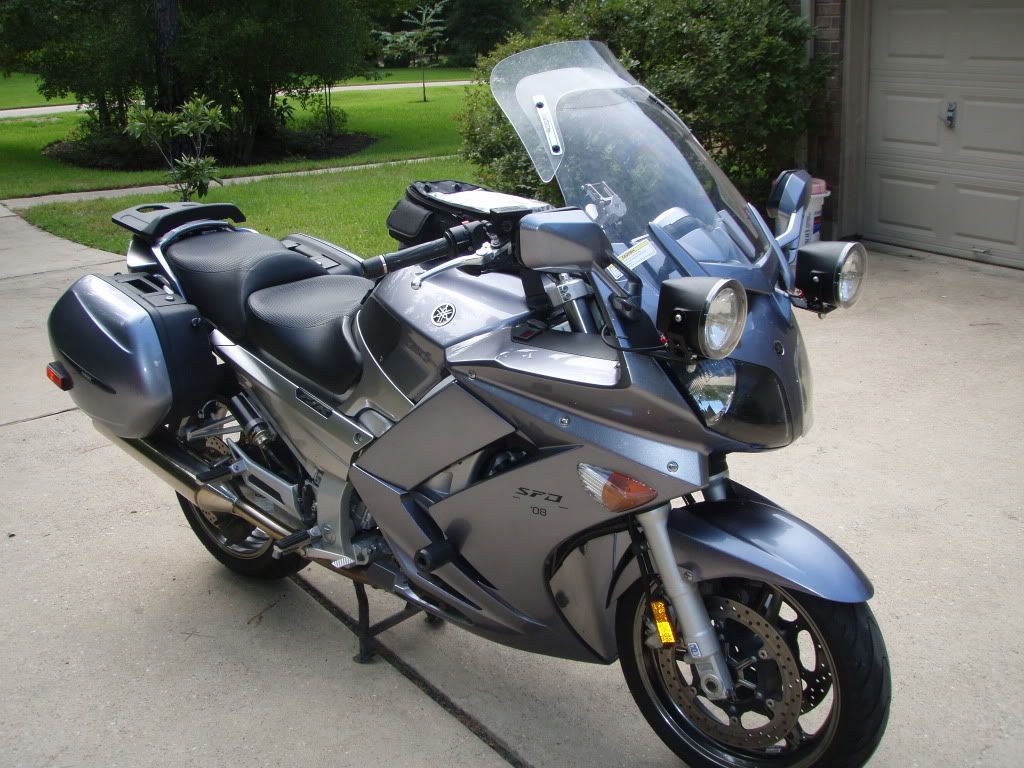

Hereís the finished install. I like the look of the black bezels better than the ďrubbed red nippleĒ look of, say, Carvers bike. I think it looks ďFactoryĒ. Each to his own.

Posted Image

Posted Image

It took me several weeks to do the whole thing, mostly because at each step I'd discover some new really cool way to do something so I'd have to wait for the UPS man to deliver it. The whole install would have only taken a day if I had the necessary parts on hand. So if you do something like this, go thru the links above, draw up a wiring diagram and make a complete list of everything you need before you start. Luckily it was too hot to ride here for July/August so it was no big deal.

dropfinal.gifsfo08.gifsfo09.gifSWFOG2010.gifswfog-twitter-60px.jpgSWFOG2014_zps29cf405c.jpg BB1500 SS1000 IBA#39439


#2 Toecutter

Toecutter

    What would DoG do?

  • Members++
  • PipPipPipPipPip
  • 7,242 posts
  • Gender:Male
  • Location:Clovis, CA
  • 2004 ABS (Gen I) N. America

Posted 23 August 2009 - 05:29 PM

I get a lot of comments about the Solteks. They're definitely bad-ass, and great for flashing the occasional cager who doesn't like the way my HID's are aimed.

Thank you for seeing me!!!

Where are you Johnny-come-latelies finding the mounting brackets?

BTW, clean install. My under-dash looks like a bird's nest....

#3 BwanaDik

BwanaDik

    FJR Commander

  • Members++
  • PipPipPipPipPip
  • 1,718 posts
  • Gender:Male
  • Location:Conroe, TX
  • 2006 ABS AE (Gen II) World

Posted 26 August 2009 - 12:32 PM

An update on this. I rode back and forth to work yesterday and, as I approached traffic in the left hand lane at a "brisk" pace, every one of the cages moved over to the next lane immediately. I'm pretty sure, given the look of the last picture, my silver Shoei, and my blue 'Stitch, that everybody thought I was an LEO. Hahahahahaah, I love it. Esp after the "What's up with the cagers in Texas thread" laugh.gif
