#21 solorogue

solorogue

    Training Pilot

  • Members+
  • PipPip
  • 47 posts
  • Location:Northern Virginia
  • Bike: 2003 (Gen I) N. America

Posted 15 April 2011 - 10:24 AM

squeezer - Thanks for the kind compliment of my mount, also great pic of the FJR with the Gold Wing hand wings on Garauld's brackets.
as for the "grommets" I used around the brackets .. Good eye in catching that.. I actually used black weather stripping from your local hardware store. I simply cut them thin and lean, and with the tape adhesive the stripping comes with I looped it around hole I made for the mounting and for good measure used my heat gun briefly to mold around the posts. It seemed to work good and finished off a clean looking mount.

TomInCA - If that pic of the burgundy FJR in post #4 that has the side lower air wings and hand wings mounted on it is a GEN2, then I guess it will work just fine for both generation bikes.

#22 RaYzerman19

RaYzerman19

    Go Wings Go!

  • Members++
  • PipPipPipPipPip
  • 2,391 posts
  • Gender:Male
  • Location:Millgrove, ON
  • Bike: 2007 ABS (Gen II) World

Posted 15 April 2011 - 11:40 AM

Anyone know why they don't have any that fit Gen II's ?

The fairing piece shown in the photo of the Gen 2 is held with two screws and two clips. There is layer of fairing beneath it, so no room. Not to mention the danger of blowing these pieces off at higher speeds (as has been posted a couple of times).
That said, if you were sure you didn't want to move the fairing pieces out, you could mount them permanently, is my guess, but you'd have to find some hardware to make it work. One also might be able to make a U-shaped bracket that would curl under the inside edge of the movable fairing piece and mount it to the solid layer underneath it.... would take some research. There is very little room between these panels, so may have to go below the solid piece?

squeezer, I like the idea of a mirror bracket mount for the Hand Wings..... I may just move mine up there.

You don't go to Freddy Beach for the beach....

Duct tape can't fix stupid, but it can muffle the sound


#23 solorogue

solorogue

    Training Pilot

  • Members+
  • PipPip
  • 47 posts
  • Location:Northern Virginia
  • Bike: 2003 (Gen I) N. America

Posted 24 April 2011 - 06:26 PM

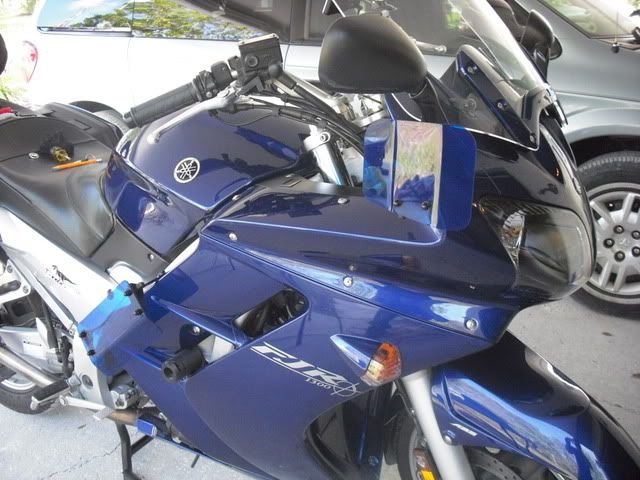

OK gang, after installing the baker air wings, I really liked them and what they offered, so I went ahead and purchased the matching hand air wings that can be used to either block the wind and elements off your hands and torso area, or be turned to let some nice breeze in. That said, with it warming up here in Virginia, I installed the Baker hand wings this weekend and I am very pleased with the look and function. I changed up the install again, just as I did the side air wings. instead of having the mount bracket go across my fairing, I used my Dremmel again and cut small notched holes for the brackets and mounted them under the faring for a cleaner look. A bit more work, but I like the results better. Took me about 40mins for the whole thing. Now I am all dressed up with the baker made air wings for both my legs, chest and hands. This should make for a bit more of a comfortable ride.
Take a look and see what you guys think. My wife says it looks like my bike now has sunglasses as it's cool :)

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

Edited by solorogue, 24 April 2011 - 06:27 PM.


#24 Bounce

Bounce

    Chicks Dig Scars

  • Admin
  • PipPipPipPipPip
  • 7,011 posts
  • Gender:Male
  • Bike: 2003 (Gen I) N. America

Posted 25 April 2011 - 06:17 AM

I would think that if you adjusted them to "catch air" and deflect it onto your legs, there would be a hell of a lot of force trying to rip them off your bike. They would also act like brakes, slowing your bike down and eating into your MPG.

ran them on my 83 GL1100 and 84 GL1200 without any problems. they were both helle-hotter than the FJR simply because the fairing was so much larger and the dead air space was bigger in the summer. they work very well. be sure to periodically check the tightness of the attachment/swivel connectors as they tend to get loose over time. nice to see they're not here for the FJR.
Ft. Worth, TX, IBA #288
FJR-Tips.org
A.B.M.

#25 fjrpro

fjrpro

    FJR Pilot

  • Members+
  • PipPipPip
  • 142 posts
  • Gender:Male
  • Location:Ms
  • Bike: 2006 ABS (Gen II) World

Posted 25 April 2011 - 12:33 PM

Well way back when Baker had not come out with a set of wings for the FJR so I made my own mount and bought there Honda Goldwing units. 39k later I am still in love keeps me cooler and warmer when needed!!! Posted Image Posted Image

#26 solorogue

solorogue

    Training Pilot

  • Members+
  • PipPip
  • 47 posts
  • Location:Northern Virginia
  • Bike: 2003 (Gen I) N. America

Posted 25 April 2011 - 05:23 PM

HEY FJRPRO, those look sleek on the blue bike. Very nice job! I dig that pretty ride.

#27 Patriot

Patriot

    Isabella is Lazarus

  • Members++
  • PipPipPipPipPip
  • 5,152 posts
  • Gender:Male
  • Location:Metairie, LA suburb of Ole Nawlins'
  • Bike: 2004 (Gen I) N. America

Posted 25 April 2011 - 06:33 PM

anyone have any interest in these...then email me at "mholiver at cox dot net" I do not use PM's
I had already determined they were appropriate to install on the side panels
I guess I decided my air control was fine as it is
(Actually I didn't want anything stuck out in the air stream breaking up the look of the bike !!! )

the extra arms in the center of the pics are optional...assembles up with or without those...

Posted Image

Posted Image

came from here for my now sold '83 GL1100 Interstate
http://www.saber-cyc...product414.html
Mike in Nawlins' ..... 2004.5 FJR 1300 Silver Bullet "Isabella" in Nawlins' ..... Darksider #53
IBA# 42430 . my pics - FLICKR CLICKY HERE and New Orleans Ride Captain; Patriot Guard Riders; www.patriotguard.org
Posted Image Posted Image Posted Image Posted Image Posted Image Posted Image

#28 MLBFJR

MLBFJR

    FNG

  • Members+
  • Pip
  • 2 posts
  • Bike: 2005 (Gen I) N. America

Posted 22 March 2012 - 03:37 PM

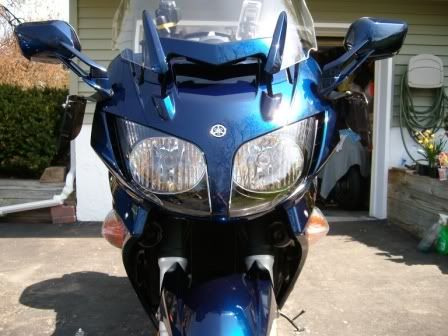

I ride all years and on of the things I contend with is the elements. Rain, wind, heat, etc..
So recently I add some deflectors on the side of the faring from Air Wings.

I have riden a few weeks with them on and I have to say I am happy. I can adjust them to keep the rain and wind off my legs and when it gets warm I can turn them to deflect the wing to blow and cool on my legs. I have to say these work well.

I mounted them a bit different then the manufacture instructs as I didn't like the idea of the mount bar across my side fairing so I made small slots with my dermal and mounted the wings under the side faring. I think it gives it a cleaner look. See what you guys think:

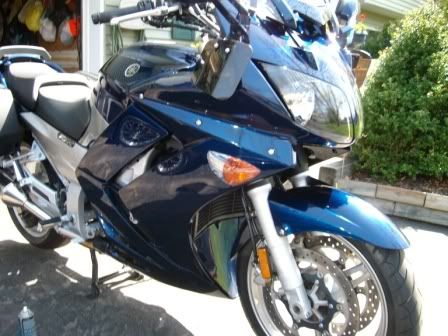

Posted Image

Posted Image


I like the look of the way you mounted the wings. Are those grommets you used where the bracket enters the fairing? If so, where did you get them?

Thanks.

#29 txvoyager

txvoyager

    FJR Pilot

  • Members++
  • PipPipPip
  • 167 posts
  • Gender:Male
  • Location:Caddo Mills, TX
  • Bike: 2003 (Gen I) N. America

Posted 22 March 2012 - 06:45 PM

Posted Image

Looks great, and would be a great addition for our upcoming TX summer. I like your clean install.

BTW, what did you use for the silver "grill" material in the openings in the fairing? How did you attach it? Looks nice...

Kevin Sawatsky, Caddo Mills, TX
IBA #487 (IBR 2013, 48 Plus!, B2B Insanity, 10 Tenths, SS5000, 50CC, BBG, SS1000)
www.txvoyager.com or FJR mods at kevinsawatsky.com/FJR.html

2001 BMW LT


#30 solorogue

solorogue

    Training Pilot

  • Members+
  • PipPip
  • 47 posts
  • Location:Northern Virginia
  • Bike: 2003 (Gen I) N. America

Posted 22 March 2012 - 09:45 PM

I didn't use grommets on the posts of my custom install. I actually used black weather stripping from your local hardware store. I simply cut them thin and lean, and with the tape adhesive the stripping comes with I looped it around hole I made for the mounting and for good measure used my heat gun briefly to mold around the posts.

For the mesh around my fairing vent openings... I simply used some stainless steel mesh you find at auto parts place like pep boys. This is the same mesh tuners put in the grills of their cars to dress them up. I cut he mesh to my fairing vents, moulded them in and then I epoxied in the mesh on the inside of my fairing. You could use liquid nails as well and just let it set.
Very simple to do and I like the look it makes.

Hope that helps gang.

#31 garyahouse

garyahouse

    newbs need the forum

  • Members++
  • PipPipPipPipPip
  • 1,999 posts
  • Gender:Male
  • Location:Spring Hill, Florida
  • Bike: 2005 ABS (Gen I) N. America

Posted 23 March 2012 - 09:09 PM

I didn't use grommets on the posts of my custom install. I actually used black weather stripping from your local hardware store. I simply cut them thin and lean, and with the tape adhesive the stripping comes with I looped it around hole I made for the mounting and for good measure used my heat gun briefly to mold around the posts.

For the mesh around my fairing vent openings... I simply used some stainless steel mesh you find at auto parts place like pep boys. This is the same mesh tuners put in the grills of their cars to dress them up. I cut he mesh to my fairing vents, moulded them in and then I epoxied in the mesh on the inside of my fairing. You could use liquid nails as well and just let it set.
Very simple to do and I like the look it makes.

Hope that helps gang.

I'm glad you resurrected this old thread. I'd forgotten that I was looking at these wings once before. Now with summer coming (it gets here a little early in Florida) I decided it's time to pull the trigger. So I ordered both the hand wings and the regular wings in Blue to match my 05. It's going to be a busy weekend next week when I mount up my wings and my AVCC and my L.E.D. tail lights. Might as well tackle it all at once. Thanks for the post and the little "reminder."

Gary
darksider #44
FJR: the most fun you can legally have.

#32 solorogue

solorogue

    Training Pilot

  • Members+
  • PipPip
  • 47 posts
  • Location:Northern Virginia
  • Bike: 2003 (Gen I) N. America

Posted 24 March 2012 - 08:06 PM

You should enjoy the air wings Gary. I love how they make a difference on my ride. They keep me a bit cooler in the heat and warmer in the cold, plus baker makes some good products and I like how they look on the bike. Hope they work out for you.

#33 garyahouse

garyahouse

    newbs need the forum

  • Members++
  • PipPipPipPipPip
  • 1,999 posts
  • Gender:Male
  • Location:Spring Hill, Florida
  • Bike: 2005 ABS (Gen I) N. America

Posted 26 March 2012 - 02:12 PM

Looking at your mounting location, I noticed you placed them just a couple inches above the "V" shaped corner of the fairing. I assume you chose this exact location for a reason? I forget now, but I'm thinking you said something about a template that came from the factory. By the way, as you probably know, your pictures from post #23 (back on April 24 last year) seem to have disappeared. I'm guessing they were of your hand wings?? Spoze you could repost them? I'd be interested in seeing how you mounted them.

Gary
darksider #44

EDIT: factory does not provide a template...gotta eyeball it.
FJR: the most fun you can legally have.

#34 garyahouse

garyahouse

    newbs need the forum

  • Members++
  • PipPipPipPipPip
  • 1,999 posts
  • Gender:Male
  • Location:Spring Hill, Florida
  • Bike: 2005 ABS (Gen I) N. America

Posted 06 April 2012 - 04:30 AM

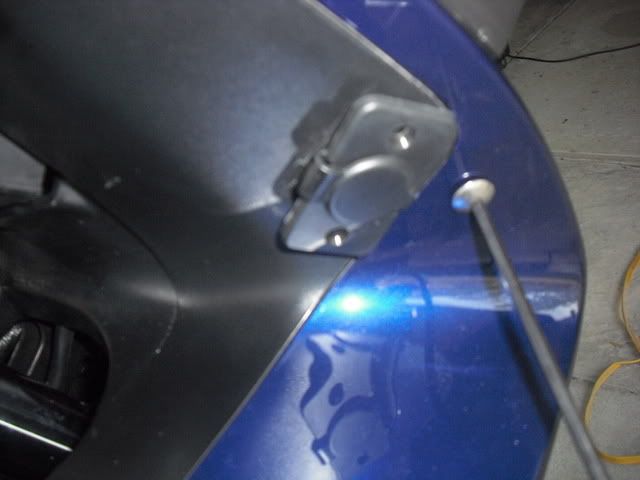

I finally finished installing my wings. Had an issue, called Baker - they were real good about it and sent me out a replacement set. They explained that the blue ones are acrylic and sometimes come ot of the press a little warped. Great customer service!

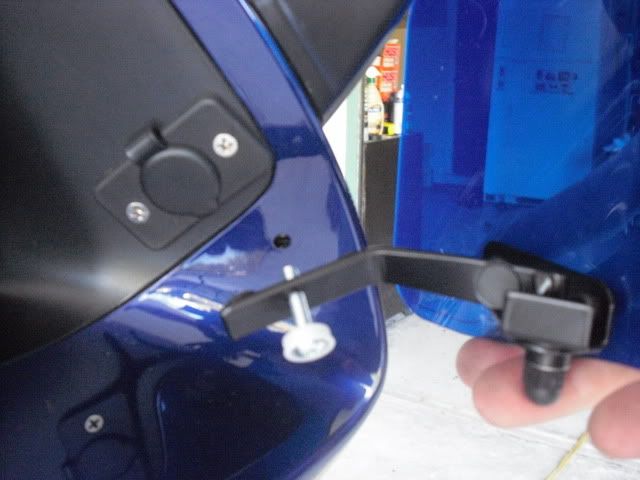

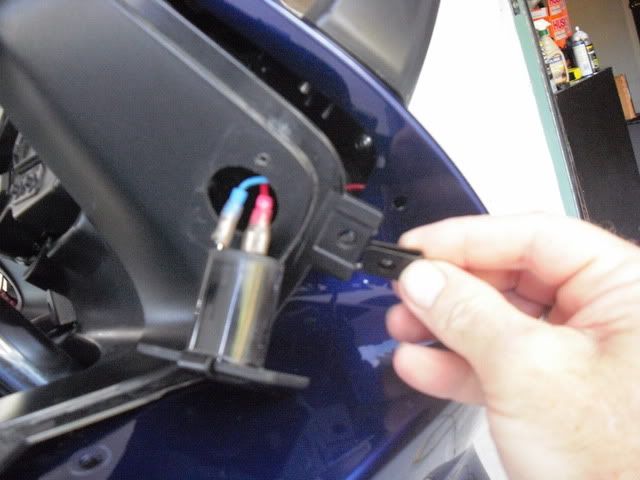

To begin, for some reason the "spring nuts" as Yammie calls them, were missing on my FJR, here i"m getting ready to slip it in place...Posted Image

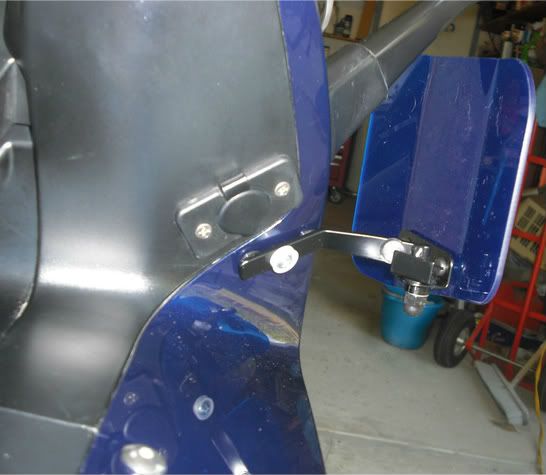

Now I've got some threads into which I can drive a screw...Posted Image

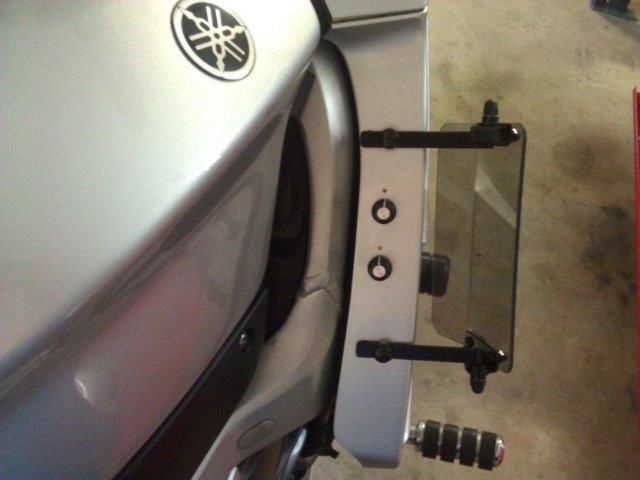

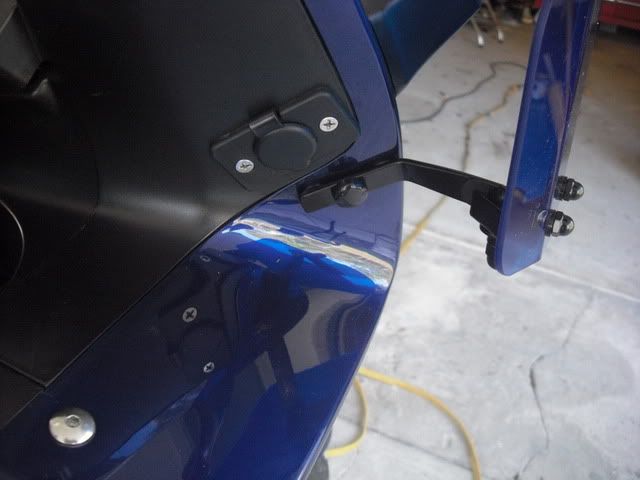

So here they are, the hand wings. Notice the two rubber grommets to protect the paint...Posted Image

All supplied hardware is stainless or aluminum and guaranteed not to corrode...Posted Image

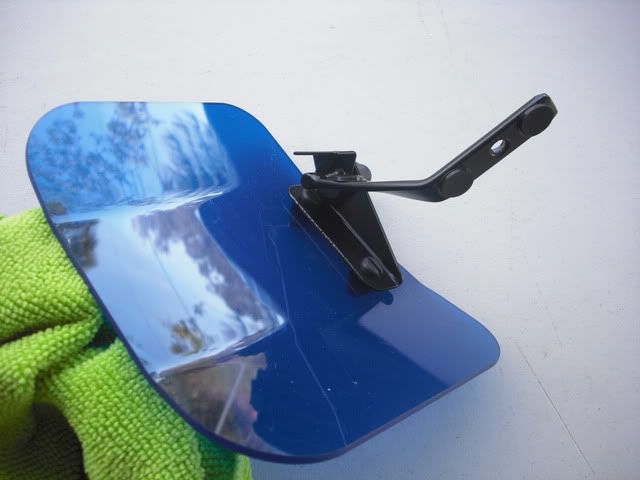

Each hand wing has a snap lock cap to cover the supplied screw...Posted Image

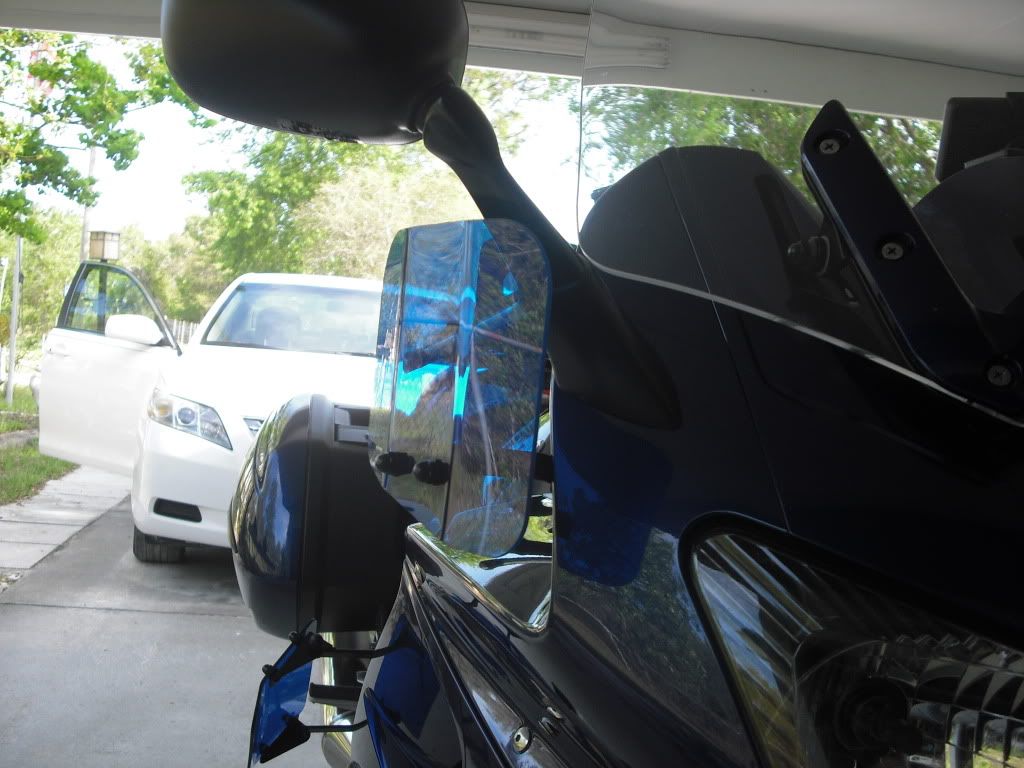

Camera angle is deceptive, they are perfectly verticle. Here they are fully closed to block air flow. Notice the rotation limiter plate attached to the hinge pin? It's about 3/4 of an inch wide. It stops the wing from turning any farther when it's in the full opn position. Good thing cause up around triple digits, the wind could really snap it open if not for the built in stop: really nice design...Posted Image

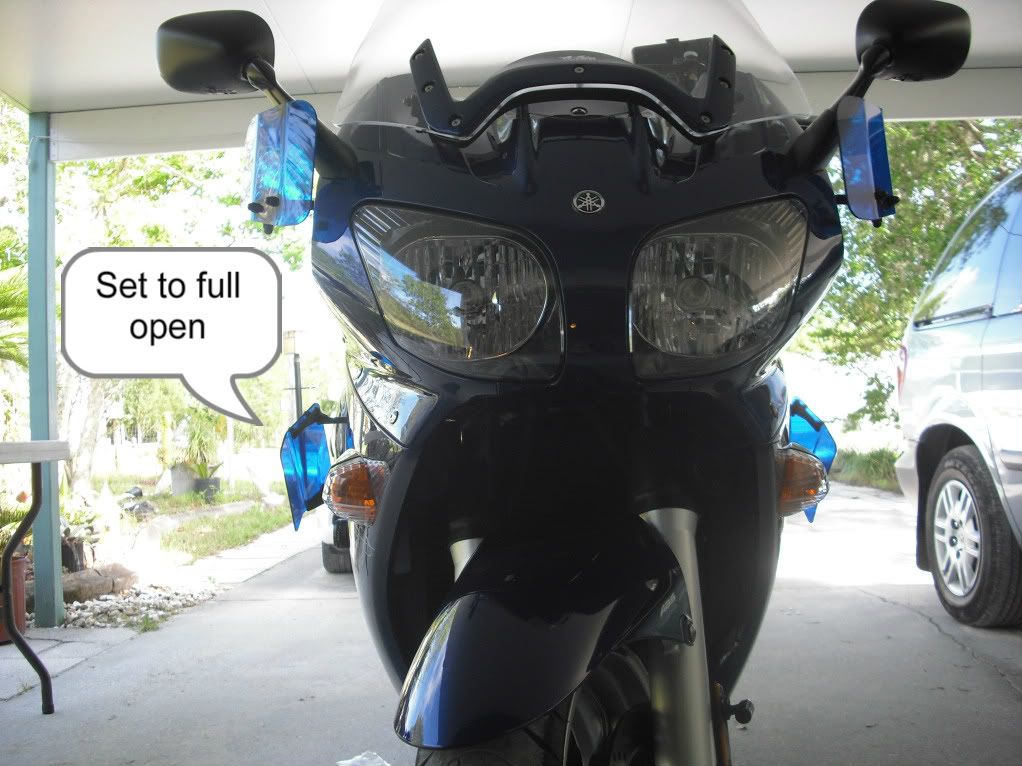

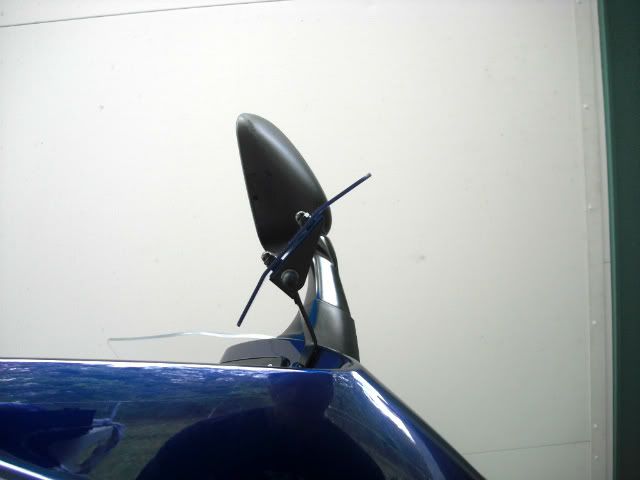

Fully open to catch max air; camera lookng straight up...Posted Image

Here the cap for the screw is in place, wing is set straight - it has little or no effect on the wind in this position...Posted Image

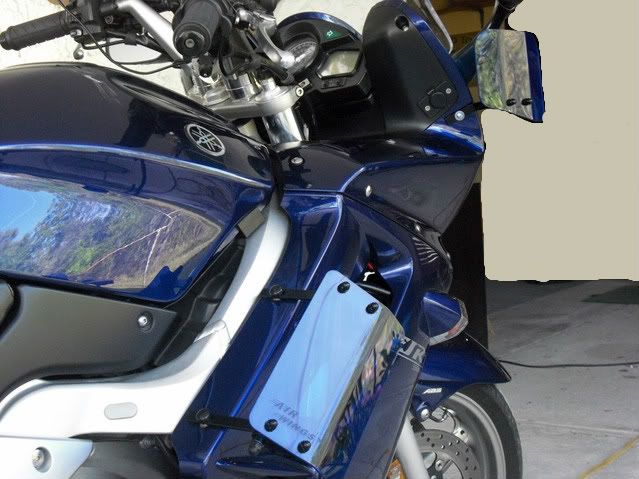

A cople other pictures showing all four wings in place...Posted Image

Posted Image

Posted Image

Posted Image

Above the bottom wing wing is open, the top wing is in closed position.

THE LOWER WINGS-on a Gen 1, wow, WHAT a difference: much cooler when it's hot out (just about 90 last week) -- and keeps the cold air OFF the knees when the weather turns cold.

THE HAND WINGS-they do indeed block some of the wind when fully closed, but where they really make the difference is when they're set in the open position. They cool the tank as well as my stomach and chest. THE RANGE OF ADJUSTMENT WORKS QUITE WELL. HUGE DIFFERENCE WHEN IT'S HOT OUT :D

Gary
darksider #44--or should I say COOL-SIDER??

-sorry about the extra large pictures-I had shoulder surgery yesterday to remove spurs and calcium deposits. I did all this w/ one finger. Think I'll go take a nap <_<
FJR: the most fun you can legally have.

#35 txvoyager

txvoyager

    FJR Pilot

  • Members++
  • PipPipPip
  • 167 posts
  • Gender:Male
  • Location:Caddo Mills, TX
  • Bike: 2003 (Gen I) N. America

Posted 06 April 2012 - 05:50 AM

Got mine installed. Air Wings...

Posted Image

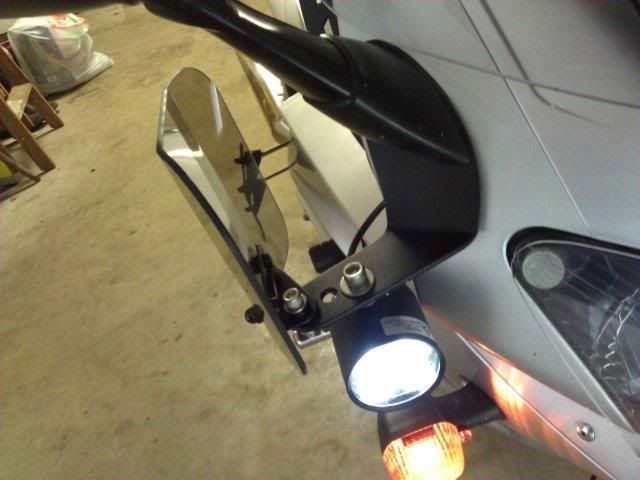

And Hand Wings... Had to play around with the light mounts to get them installed, but turned out great!

Posted Image

Kevin Sawatsky, Caddo Mills, TX
IBA #487 (IBR 2013, 48 Plus!, B2B Insanity, 10 Tenths, SS5000, 50CC, BBG, SS1000)
www.txvoyager.com or FJR mods at kevinsawatsky.com/FJR.html

2001 BMW LT


#36 garyahouse

garyahouse

    newbs need the forum

  • Members++
  • PipPipPipPipPip
  • 1,999 posts
  • Gender:Male
  • Location:Spring Hill, Florida
  • Bike: 2005 ABS (Gen I) N. America

Posted 06 April 2012 - 07:57 AM

Got mine installed. Air Wings...

Posted Image


Nice looking install. Looks like you mounted your lower wings a few inches higher than mine. It's hard to see from the angle you shot. That would get a little more air above the knee ?? Also, do they get in the way of those forward mounted foot pegs? HMMMM... is that why the wings are mounted a little higher ?
Gary
darksider #44
FJR: the most fun you can legally have.

#37 LAF

LAF

    FJR Commander

  • Members++
  • PipPipPipPipPip
  • 1,130 posts
  • Gender:Male
  • Location:Harrisburg, PA
  • Bike: 2010 ABS (Gen II) N. America

Posted 07 April 2012 - 05:09 AM

SO do these fit a Gen II? I must have missed a solid yes or no answer.

Do you need anything extra to mount either set?

I can say the BMW LT had wings under the mirrors and they just were awesome at bringing air in or closing it off.

So on a 10 fJR what needs ordered?

Thanks for any help on this.

Just need to spend some money I guess.

#38 garyahouse

garyahouse

    newbs need the forum

  • Members++
  • PipPipPipPipPip
  • 1,999 posts
  • Gender:Male
  • Location:Spring Hill, Florida
  • Bike: 2005 ABS (Gen I) N. America

Posted 07 April 2012 - 01:35 PM

SO do these fit a Gen II? I must have missed a solid yes or no answer.

Do you need anything extra to mount either set?

I can say the BMW LT had wings under the mirrors and they just were awesome at bringing air in or closing it off.

So on a 10 fJR what needs ordered?

Thanks for any help on this.

Just need to spend some money I guess.

Yes they do. Here's the link: CLICKY Click on the little window on the left right below where it says "New Generation Hand Wings." Then choose Gen 2, and the select the color you want, clear, or light or dark tint.

Ya don't need anything else. Ya just order the kit. Everything's included. I'd recommend the handwings over the lower wings for a Gen 2... as you don't have near the heat problem below your knees that Gen 1 bikes have. Besides, they're cheaper.

Gary
darksider #44
FJR: the most fun you can legally have.

#39 txvoyager

txvoyager

    FJR Pilot

  • Members++
  • PipPipPip
  • 167 posts
  • Gender:Male
  • Location:Caddo Mills, TX
  • Bike: 2003 (Gen I) N. America

Posted 07 April 2012 - 06:50 PM

Looks like you mounted your lower wings a few inches higher than mine. It's hard to see from the angle you shot. That would get a little more air above the knee ?? Also, do they get in the way of those forward mounted foot pegs? HMMMM... is that why the wings are mounted a little higher?

Thanks! My mounting location was primarily dictated by the Heat Troller controls already mounted there. There is also a foam spacer just below the lower control. Not sure if moving up or down would change the air flow much, but definitely clear the foot pegs up front.

Posted Image

Kevin Sawatsky, Caddo Mills, TX
IBA #487 (IBR 2013, 48 Plus!, B2B Insanity, 10 Tenths, SS5000, 50CC, BBG, SS1000)
www.txvoyager.com or FJR mods at kevinsawatsky.com/FJR.html

2001 BMW LT


#40 dj bill

dj bill

    FJR Commander

  • Members++
  • PipPipPipPipPip
  • 1,064 posts
  • Gender:Male
  • Location:Moreno Valley Ca
  • Bike: 2008 ABS (Gen II) N. America

Posted 08 April 2012 - 10:08 AM

i like my wings mild,not to spicy

Lets Play a Game of FUCK OFF , You Go First !
