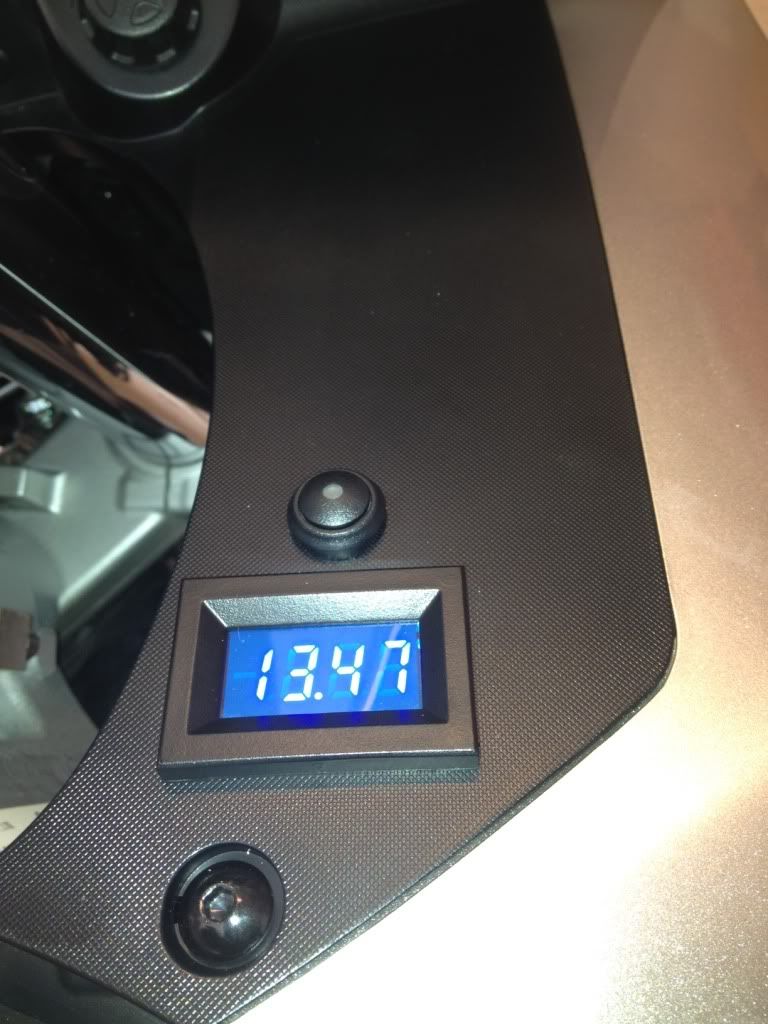

Got it all hooked up! Works great! For reference for anyone with a 2010, when cruising around the freeway at about 75 to 85, the meter typically reads a hair over 14 volts. (14.0X) If this has been covered already, my apologies. These readings are with no other electronic farkles running whatsoever except for the meter itself, which draws almost nothing.


Posted Image

#2 Gregg

Gregg

    FNG

  • Members+
  • Pip
  • 14 posts
  • Gender:Male
  • Location:Virginia Beach, VA
  • 2010 ABS (Gen II) N. America

Posted 19 March 2012 - 11:17 AM

Where did you get the black bevelled cover plate? I ordered one from Datel (in blue) for another bike and it didn't have that cover.

Gregg
5XSS1K, 100CCC Insanity, 48-10
2011 Ninja 250, 2010 FJR-1300, 2009 KLR-650, 2006 Goldwing
IBA# 35370

#3 MrM0t0

MrM0t0

    FJR Pilot

  • Members++
  • PipPipPip
  • 305 posts
  • Gender:Male
  • Location:Providence, RI
  • 2008 ABS AE (Gen II) N. America

Posted 19 March 2012 - 11:25 AM

I too would like to know from whence doth come said bezel. Have one waiting to install and struggling with an aesthetically pleaseing finish.

Edited by MrM0t0, 19 March 2012 - 11:26 AM.

Posted ImagePosted ImagePosted Image

#4 FJRBilldo

FJRBilldo

    FJR Pilot

  • Members+
  • PipPipPip
  • 160 posts
  • Gender:Male
  • Location:Valencia, CA
  • 2010 ABS (Gen II) N. America

Posted 19 March 2012 - 11:55 AM

It's an accessory. Also available from Datel. Some of the guys here prefer to mount without it. I don't have the patience to cut that clean of a hole :-)
Yo can also get the rubber gasket that goes under the bezel. The button above is a momentary switch so I can push it with the key off and have a look at the battery.

#5 graler

graler

    FJR Pilot

  • Members++
  • PipPipPip
  • 284 posts
  • Gender:Male
  • Location:Cedar Park, TX
  • 2006 ABS (Gen II) World

Posted 19 March 2012 - 01:01 PM

That looks really nice. I have had that panel off before and it didn't see like there was that kid of space behind it. Obviously there is. You didn't happen to measure the distances off of some edges to help the rest of us along?

#6 Pat C

Pat C

    FJR Pilot

  • Members++
  • PipPipPip
  • 359 posts
  • Gender:Male
  • Location:Thomaston, CT
  • 2007 ABS AE (Gen II) N. America

Posted 19 March 2012 - 01:25 PM

Got it all hooked up! Works great! For reference for anyone with a 2010, when cruising around the freeway at about 75 to 85, the meter typically reads a hair over 14 volts. (14.0X) If this has been covered already, my apologies. These readings are with no other electronic farkles running whatsoever except for the meter itself, which draws almost nothing.


Posted Image

Where did you get it from?
Pat C.

#7 Gregg

Gregg

    FNG

  • Members+
  • Pip
  • 14 posts
  • Gender:Male
  • Location:Virginia Beach, VA
  • 2010 ABS (Gen II) N. America

Posted 19 March 2012 - 01:35 PM

The button above is a momentary switch so I can push it with the key off and have a look at the battery.


Obviously you tapped the leads into something that is only on when you have the key turned on. So do you have the positive side wired two ways, one to an accessory for when the key is turned on, and the other is to the battery through the SPST (on) switch?
5XSS1K, 100CCC Insanity, 48-10
2011 Ninja 250, 2010 FJR-1300, 2009 KLR-650, 2006 Goldwing
IBA# 35370

#8 FJRBilldo

FJRBilldo

    FJR Pilot

  • Members+
  • PipPipPip
  • 160 posts
  • Gender:Male
  • Location:Valencia, CA
  • 2010 ABS (Gen II) N. America

Posted 19 March 2012 - 02:03 PM

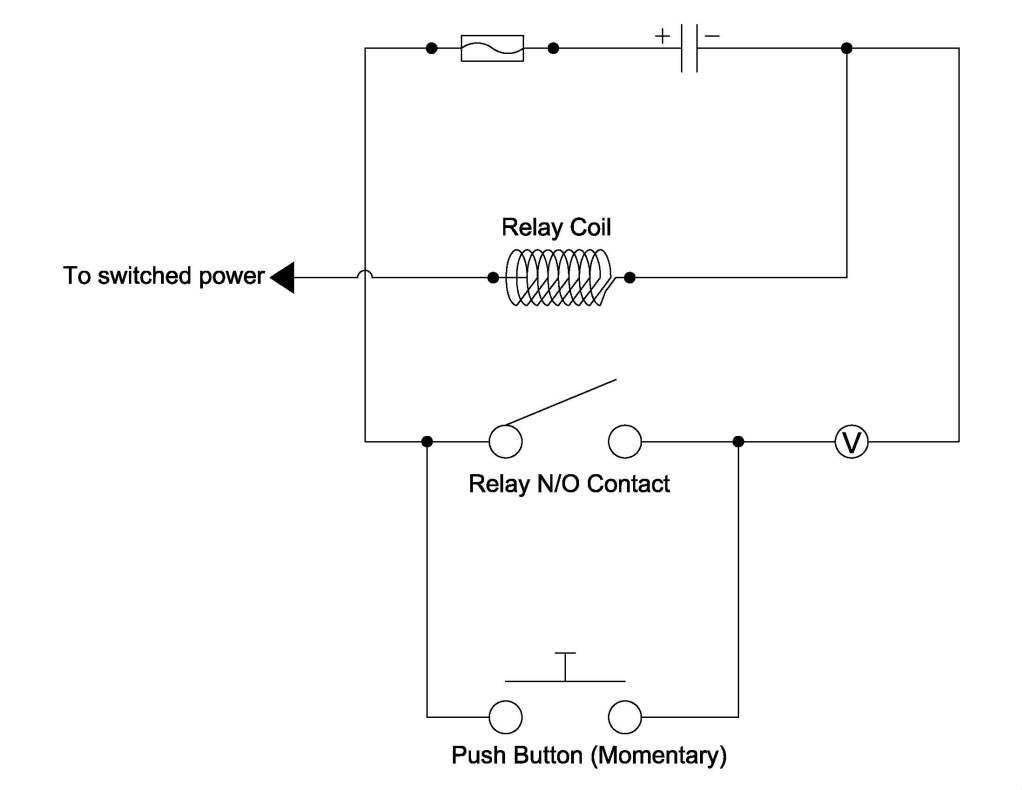

Here is a quick and dirty diagram of how I wired it. Probably the same as everyone else did except for maybe the push button.

Yes it is tight on space but it fits. The relay is down along side the side fairing kind of near the battery.

Posted Image

Oops. Added the fuse.

Edited by FJRBilldo, 19 March 2012 - 02:10 PM.


#9 FJRBilldo

FJRBilldo

    FJR Pilot

  • Members+
  • PipPipPip
  • 160 posts
  • Gender:Male
  • Location:Valencia, CA
  • 2010 ABS (Gen II) N. America

Posted 19 March 2012 - 02:11 PM

Posted Image

Edited by FJRBilldo, 19 March 2012 - 02:13 PM.


#10 FJRBilldo

FJRBilldo

    FJR Pilot

  • Members+
  • PipPipPip
  • 160 posts
  • Gender:Male
  • Location:Valencia, CA
  • 2010 ABS (Gen II) N. America

Posted 19 March 2012 - 02:16 PM

I give up!! Frickin Photobucket....

I added the fuse but it keeps putting the original sketch in there. Anyways there's a fuse as close to the + battery as I could get it.

Edited by FJRBilldo, 19 March 2012 - 02:17 PM.


#11 wfooshee

wfooshee

    O, Woe is me!

  • Members++
  • PipPipPipPipPip
  • 5,384 posts
  • Gender:Male
  • Location:Panama City, FL
  • 2003 (Gen I) N. America

Posted 19 March 2012 - 02:18 PM

OK, we got it!!!! :D (Fuse is in there, your browser is reading the picture from your cached pages. It takes a while for photobucket to catch up on your own machine.)
Darksider #18

Are you the reason I'm so far above average?
I'm always right, yet it continues to surprise people! How can that be?

#12 LAF

LAF

    FJR Commander

  • Members++
  • PipPipPipPipPip
  • 1,130 posts
  • Gender:Male
  • Location:Harrisburg, PA
  • 2010 ABS (Gen II) N. America

Posted 19 March 2012 - 04:14 PM

Got it all hooked up! Works great! For reference for anyone with a 2010, when cruising around the freeway at about 75 to 85, the meter typically reads a hair over 14 volts. (14.0X) If this has been covered already, my apologies. These readings are with no other electronic farkles running whatsoever except for the meter itself, which draws almost nothing.


Posted Image

I been through the whole boat load of time on this and it must be a 10 thing. Others report 14.20 and such. I have achieved a 14.18 on high idle one time and run 13.96 to 14.0x consistent. Maybe 14.1X with everything off, but not often.

I am just living with it right now but sure would like to know why not many of us on newer, 10;s a few it seems, never show 14.20?

It starts, I ride it, and the Datel is a nice light over there that is telling me something, that I am not sure I ever needed to know :-)

#13 MrM0t0

MrM0t0

    FJR Pilot

  • Members++
  • PipPipPip
  • 305 posts
  • Gender:Male
  • Location:Providence, RI
  • 2008 ABS AE (Gen II) N. America

Posted 19 March 2012 - 05:11 PM

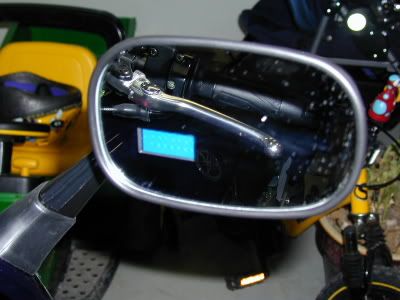

Does anyone know if the meter sold by advmonster is a Datel with their name printed on it?

My link
Posted ImagePosted ImagePosted Image

#14 Donal

Donal

    FJR Squadron Leader

  • Members++
  • PipPipPipPip
  • 703 posts
  • Gender:Male
  • Location:Holt, Norfolk, UK.
  • 2009 ABS (Gen II) World

Posted 20 March 2012 - 03:41 AM

Does anyone know if the meter sold by advmonster is a Datel with their name printed on it?

My link


Probably not, the standard Datel is a two wire meter, the one shown is a three wire :rolleyes:

Don

Look before you leap may be good advice - but if you really intend leaping, don't spend too long looking...........


#15 kevinw

kevinw

    Training Pilot

  • Members+
  • PipPip
  • 58 posts
  • Gender:Male
  • Location:Nr. Dover, UK
  • 2008 ABS (Gen II) World

Posted 25 March 2012 - 10:39 AM

I've been puzzling where to fit a Datel voltmeter and having pulled that panel on our 2008 Gen 2 I've been scratching my head as to how on earth you made it fit! Does the 2010 look the same as this under the panel?

Posted Image

Thanks.

Kevin

Edited by kevinw, 25 March 2012 - 10:46 AM.

I'm old enough to know better but don't

Our Web Site

#16 tcfjr

tcfjr

    FJR Squadron Leader

  • Members++
  • PipPipPipPip
  • 900 posts
  • Gender:Male
  • Location:Temple City, CA
  • 2005 ABS (Gen I) N. America

Posted 25 March 2012 - 11:54 AM

The meter and the bezel are available at Bike Meters. I have the DMS-20PC-1-DCM in red with 1/10th volt readout, mounted without the bezel in panel D on my '05.

Posted Image

Brian C. - 2005 FJR1300A | IBA #25366 | tcfjr.goption.com | 100k.png


#17 FJRBilldo

FJRBilldo

    FJR Pilot

  • Members+
  • PipPipPip
  • 160 posts
  • Gender:Male
  • Location:Valencia, CA
  • 2010 ABS (Gen II) N. America

Posted 26 March 2012 - 09:14 AM


Got it all hooked up! Works great! For reference for anyone with a 2010, when cruising around the freeway at about 75 to 85, the meter typically reads a hair over 14 volts. (14.0X) If this has been covered already, my apologies. These readings are with no other electronic farkles running whatsoever except for the meter itself, which draws almost nothing.


Posted Image

Where did you get it from?


Shit! Pat so sorry I just saw your question. I ordered it directly from DATEL on the web.

Clicky

Better late than never I guess.

The meter and the bezel are available at Bike Meters. I have the DMS-20PC-1-DCM in red with 1/10th volt readout, mounted without the bezel in panel D on my '05.

Posted Image


That's a mighty fine hole ya got there partner.
Nice work!

#18 SkooterG

SkooterG

    Purveyor of Crooked Facts

  • Admin
  • PipPipPipPipPipPip
  • 11,128 posts
  • Gender:Male
  • Location:Skootsdale, AZ
  • 2004 (Gen I) N. America
  • 2009 A (Gen II) N. America

Posted 26 March 2012 - 10:00 AM

Me? I am a bezel-less kind of guy. Like the clean look like it was just meant to fit in there. I also like to put it in the upper fairing panel. Less of a hassle when performing the regular task of removing the 'D' panel.



Posted Image

IBA #327........................ Darksider #52



FJRForum:  No fun allowed here!

FJR#1 - The 'Dirty Ol Whore' - 2004 non-abs - RIP @ 226,400 - Gone, but not forgotton.
FJR#2 - The 'Hula Girl' - 2004 ABS - 147k
FJR#3 - The 'Virgin' - 2004 ABS - 4344 miles, a garage queen
FJR#4 - The Oregon FJR - 2004 ABS - 65k
FJR#5 - The Bastard POS Gen II - 2009A - 68k

FJR#6 - ?????

200K_04CLUB.jpg 100K%2004CLUB.jpg 158771.png


#19 kevinw

kevinw

    Training Pilot

  • Members+
  • PipPip
  • 58 posts
  • Gender:Male
  • Location:Nr. Dover, UK
  • 2008 ABS (Gen II) World

Posted 03 April 2012 - 01:27 PM

Shit! Pat so sorry I just saw your question. I ordered it directly from DATEL on the web.


Did you miss my question too? (he asked, hopefully. :))

Kevin
I'm old enough to know better but don't

Our Web Site

#20 Bustanut joker

Bustanut joker

    STFU

  • Members++
  • PipPipPipPipPip
  • 8,116 posts
  • Gender:Male
  • Location:Owosso, MI
  • Other or considering FJR

Posted 03 April 2012 - 01:55 PM

This has got to be the slickest mount I seen so far



Posted Image

Weather protected, and in a spot you don't need to look for.
You seein this Andy??
Posted ImagePosted Image Posted ImagePosted Image Los Robustos M/C member #18 Darksider #28
