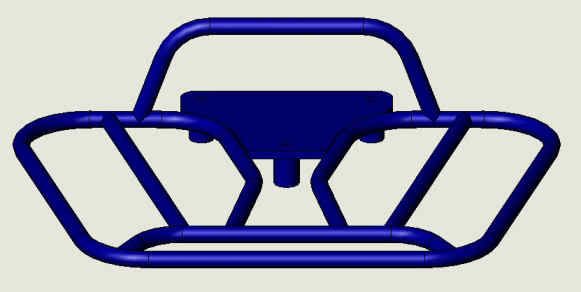

Hi gang, I have been playing around with my CAD system :wacko: and came up with a new rack design made to mount onto the new 2006 tail shelf. Here are some images of it. What do you think? The first person who wants one and can send me their tail shelf rack for a week or so will get it for free - all they have to do is pay for return shipping of their rack and the new one. I will need the time to perform final design fitment work, fabrication and paint color matching.









B)


Last edited by a moderator:

Tom of VA

Well-known member
Joined
Jun 29, 2005
Messages
114
Reaction score
0
Location
Oak Hill, VA
How about a backrest that can be joined to the stock rack. Just a backrest. Maybe make it easy to remove. Have it hook on the front part and secure with the center bolt, or a receiver mount for the backrest attached to the Yamaha rack? I don't ride my wife very much but it would be nice to be able to add a backrest when needed, and keep my stock seat. Do you have a design for that?



RTSR1/FJR

Gort - Klaatu barada nikto!
Joined
Jul 8, 2005
Messages
778
Reaction score
1
Location
Florida, N28 36.478 W80 48.478
How about a backrest that can be joined to the stock rack. Just a backrest. Maybe make it easy to remove. Have it hook on the front part and secure with the center bolt, or a receiver mount for the backrest attached to the Yamaha rack? I don't ride my wife very much but it would be nice to be able to add a backrest when needed, and keep my stock seat. Do you have a design for that?
I believe he already makes one!



Paladin

Active member
Joined
Aug 14, 2005
Messages
41
Reaction score
0
Backrests like these?


Style A - $160 delivered

Style B - $150 delivered

Send me a note if interested... B)
Yes, like those. Will they fit the 06, or are you still needing a rack to do final testing on? I am first in line for the 06 (had my PDP in since day one) so I may be able to send you mine. I will keep you posted.



garauld

TIGmeister
FJR Supporter
Joined
Jun 26, 2005
Messages
897
Reaction score
187
Location
Binghamton, NY
These backrests will probably not fit the '06 model due to the different bolt pattern. They are all tig welded aluminum and then powdercoated satin black. The new bolt in the rear is SST. I also include a pair of rubber strips that will protect the top rail...



FJRScorpion

Well-known member
Joined
Nov 4, 2005
Messages
174
Reaction score
0
Location
Griffith, IN
Here's a few pictures of my backrest that Gary made for my '05, some examples of Gary's fine workmanship. The price was right and the quality beyond question. The pictures don't begin to show the quality and paint match. My wife will be thoroughly please next season and I can quit getting that infernal 'wedgey' from her pulling on my belt everytime I accelerate! Sorry about the giant size but I'm still getting the hang of posting pictures. :D









Tom of VA

Well-known member
Joined
Jun 29, 2005
Messages
114
Reaction score
0
Location
Oak Hill, VA
FJRscorpion,

Did it come painted? Have you had a chance to ride a passenger yet? Looks like you might be snowed in.


Last edited by a moderator:

Tom of VA

Well-known member
Joined
Jun 29, 2005
Messages
114
Reaction score
0
Location
Oak Hill, VA
garauld,

Is it possible to get a back rest just like FJRScorpion's, but with the pad mounted lower on the bracket instead of high on the bracket like his? Same parts, just mount the pad right above the bend so the pad reveal from the back is even all the way around. Do these come painted or did FJRScorpion paint his own?

Thanks,

Tom
